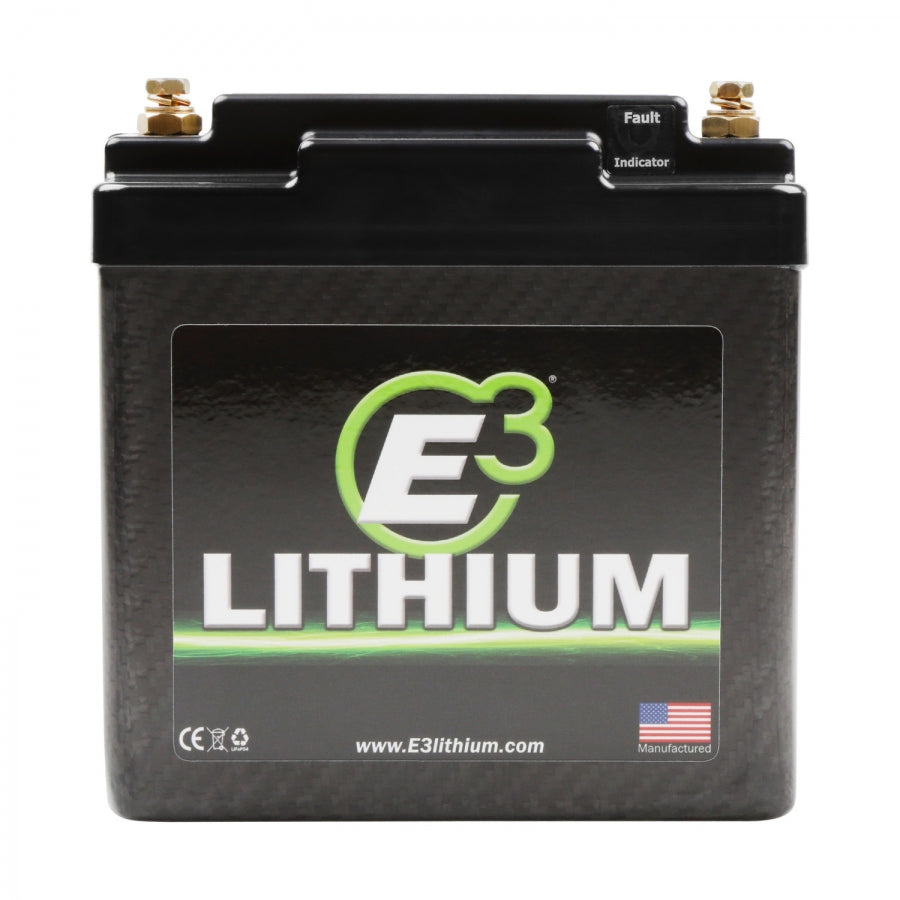

E3.503 - SuperLite 1600 Lithium Battery
Popis
The E3.503 SuperLite 1600, nicknamed THE BEAST, features a whopping 1600 Pulse Cranking Amps coupled with a 32 Amp Hour capacity that makes it, pound for pound, the most powerful battery in its class. Ideal for all types of motorsports applications as well as demanding powersports vehicles, the Beast can even power some of the most complex electronic racecars without the assistance of an alternator! Tipping the scales at just 8.9 pounds the Beast gives you the ability to maximize your vehicles weight distribution! Its unique fault light indicator, which can even be hardwired into a dash mounted light, allows you to keep tabs on the performance of your battery. Some of the performance benefits include:
- 80% Lighter than traditional batteries
- 3x Longer life than traditional batteries
- Charges faster than traditional batteries
- Delivers much quicker starts than traditional batteries
- IP 66 Environmental Rating (pressure washer friendly)
- Centered terminals allow mounting in any position
- Environmentally friendly
- 5 Year Warranty (see warranty page for details)
The Beast offers a built-in Double Redundant Battery Management System. This system offers the following attributes to ensure years of trouble-free power delivery from your E3 Lithium Battery.
- Over-Charge Protection
- Over-Discharge Protection
- Short Circuit Protection (up to 1,000 amps)
- Excessive Cranking Protection
- Built In Cell Balancing Technology
Brass terminals adapters are available for purchase separately.
NOTE: A lithium compatible battery charger is required in order to properly and safely charge your E3 Lithium Battery. We recommend OptiMate Lithium Chargers which you can purchase buy cliking the following link:
Click HERE to buy the OptiMATE Lithium Charger
All E3 Lithium Batteries are designed, engineered and manufactured right here in the USA using imported lithium cells.
Specifications
Voltage: 13.2V
Pulse Crank Amps (PCA): 1600A (3 sec @ 25 °C, voltage >9V)
Cold Crank Amps (CCA): 760A (modified SAE test, 3 sec@ 0°F, volts >7.2V)
Capacity: 32 Amp Hour (Ah)
Weight: 8.9 lb. (4Kg)
Dimensions: 6.5”(L) x 5.1”(W) x 6.6”(H) 166mm(L) x 129mm(W) x 168mm(H)
Capacity vs Temperature: 25 °C = 100% 0°C = 94% -30°C = 88%
Self-Discharge Rate: < 2% per month @ 25 °C
Continuous Discharge Amps: 200A
Standard Charge Voltage: 13.9 - 14.6 V
Maximum Charge Voltage: 15V
Recommended Charge Amps: 5 - 30A
Max Charge Amps: 160A (from vehicle charging system)
Life (Charge cycles, 80% depth of discharge): 4000 cycles @ 1C discharge, 25°C & 2000 cycles @10C discharge , 25°C
Life (Years): Up to 8 Years
Environmental Rating: IP 68 (waterproof)
Operating Temperature: -30 °C to +60 °C
Storage Temperature: -40 °C to +70 °C
