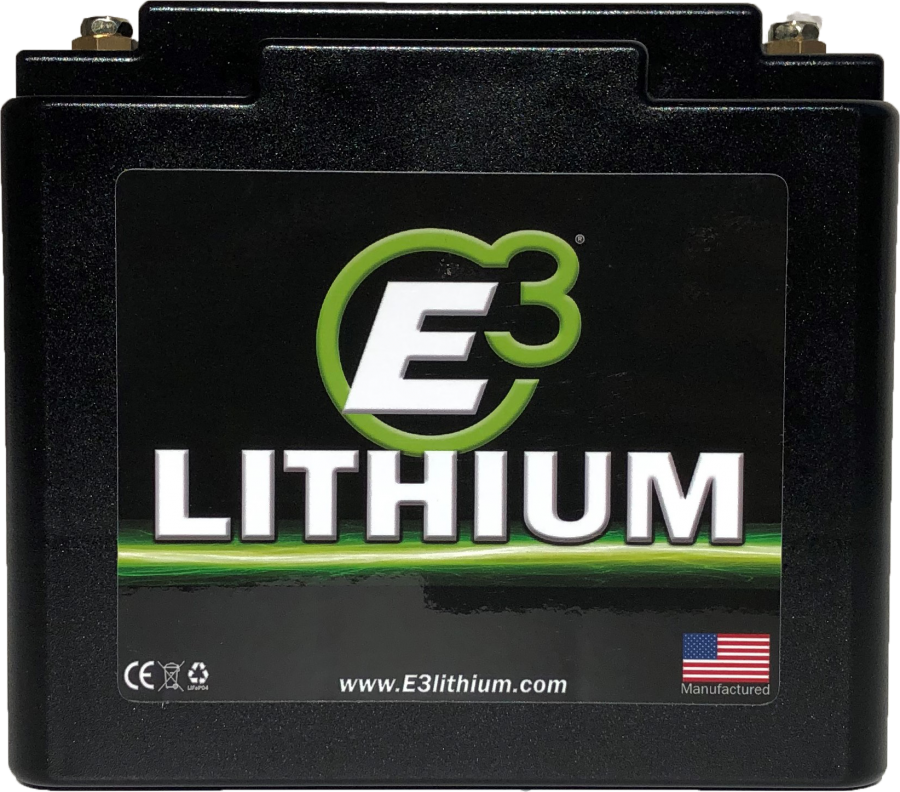

E3.501 SuperLite 800 Lithium Battery
説明文
Specially designed for cars running the GM 602/604 Crate Motor, E3’s SuperLite 800 Lithium Battery offers the added benefit of being one third of the size of a regular Group 34 lead acid/AGM battery plus a weight savings of over 35 pounds! That means that you have the option of mounting it literally anywhere. The downstream advantage is that you can reduce the length of your battery cables thus saving even more weight. And any good racer knows if you can save weight in one spot, you can add lead in more critical areas for handling improvement. Some of the performance benefits include:
- 80% Lighter than traditional batteries
- 3x Longer life than traditional batteries
- Charges faster than traditional batteries
- Delivers much quicker starts than traditional batteries
- IP 66 Environmental Rating (pressure washer friendly)
- Centered terminals allow mounting in any position
- Environmentally friendly
- 5 Year Warranty (see warranty page for details)
All E3 Lithium Batteries also feature a built-in Battery Management System. This system offers the following attributes to ensure years of trouble-free power delivery from your E3 Lithium Battery.
- Over-Charge Protection
- Over-Discharge Protection
- Short Circuit Protection (up to 1,000 amps)
- Excessive Cranking Protection
- Built In Cell Balancing Technology
- LED Battery Fault Light Indicator
Brass terminals adapters are available for purchase separately.
NOTE: A lithium compatible battery charger is required in order to properly and safely charge your E3 Lithium Battery. We recommend OptiMate Lithium Chargers which you can purchase buy cliking the following link:
Click HERE to buy the OptiMATE Lithium Charger
All E3 Lithium Batteries are designed, engineered and manufactured right here in the USA using imported lithium cells.
Specifications
- Voltage: 13.2V
- Pulse Crank Amps (PCA): 840A (3 sec @ 25 °C, voltage >9V)
- Cold Crank Amps (CCA): 400A (modified SAE test, 3 sec@ 0°F, volts >7.2V)
- Capacity: 15.6 Amp Hour (Ah)
- Weight: 4.9 lb. (2.2Kg)
- Dimensions: 6.5”(L) x 3.1”(W) x 6.6”(H) 166mm(L) x 79mm(W) x 168mm(H)
- Capacity vs Temperature: 25 °C = 100% 0°C = 92% -30°C = 80%
- Self-Discharge Rate: 3% per month @ 25 °C
- Continuous Discharge Amps: 150A
- Standard Charge Voltage: 13.9 - 14.6 V
- Maximum Charge Voltage: 15V
- Recommended Charge Amps: 5 - 25A
- Max Charge Amps: 120A (from vehicle charging system)
- Life (Charge cycles, 80% depth of discharge): 4000 cycles @ 1C discharge rate, 25°C & 2000 cycles @10C discharge rate, 25°C
- Life (Years): Up to 8 Years
- Environmental Rating*: IP 66 (wash down with a high pressure washer)
- Operating Temperature: -30 °C to +60 °C
- Storage Temperature: -40 °C to +70 °C
